CLH100 Single H2S Detector-北京凌天智能装备集团股份有限公司

New product

Product info

Parameters

Manufacturer：TOPSKY
Model: CLH100
PN:
Agent:
Certificate: Explosion proof certificate Coal mine safety certificate Test report

Product introduction

Applications:

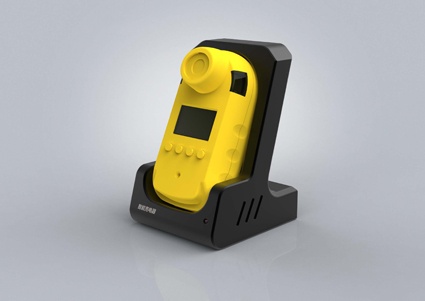

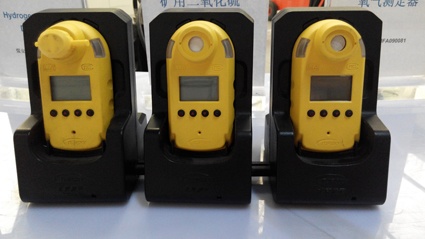

Single H2S detector is an intrinsically safe and explosion-proof instrument and is designed to deter H2S.

Single H2S detector is a low-cost, maintenance-free single gas monitor designed to protect personnel from dangerous H2S gas exposure in the most extreme conditions. Despite its compact size, the single H2S detector includes features usually found only in larger multi-gas monitors including a large, OLED display, internal audible/visual alarms and simple push-button operation.

The monitor continuously displays ambient combustible gas readings and will alert the user when gas concentrations exceed the preset low or high levels. Added features include adjustable alarm setpoints, calibration gas values, and choice of text-only display selected by the user through a simple, push-button routine. Single H2S detector also has a peak/hold feature to show the highest reading during a shift and includes a special flip-cap calibration adapter for quick and simple calibration. Single H2S detector is covered by a two-year warranty from the date of manufacture.

It is used at the underground coal mine and mine safety inspection mainly. Certainly, it is also applied to fire fighting, confined space, chemical industry, oil and all kinds of environment that needed to measure the combustible gas.

Feature	Benefit
2-year warranty	Lowers the overall cost of ownership by providing a full 24 months of warranty coverage.
Weight of 102g	Light weight and compact size, can be worn on the belt, shirt pocket, coveralls or hard-hat.
Flip-cap calibration feature	Single H2S detector has a unique, built in calibration adapter to make calibration easy and eliminates the need to search for a calibration cup.
OLED display	Provides continuous display of the actual concentration of combustible gas in the ambient environment as well as remaining battery life.
Adjustable low and high alarm setpoints	The user can configure single H2S detector r to suit a number of different applications.
High visibility case	From a distance, it’s color makes it easy for Safety Professionals to verify that workers are protected.
5 second delay shut-off protection	Single H2S detector cannot be accidentally shut off since the on/off button must be depressed for five continuous seconds.

Technical specification:

Sensors:	Electrochemical sensors (H2S )
Range：	H2S:0~100ppm
Accuracy：	1ppm
Resolution：	1ppm
Power Source:	1500mAH lithium battery ；rechargeable battery
Temperature Range:	-4°F to 122°F (-20°C to 50°C) typical
Humidity Range:	0 to 95% RH typical
Alarms:	Adjustable low and high alarm setpoints
Explosion protection	Exibd I
Protection grade	IP54
Dimensions:	93mm×49mm×22mm
Weight:	102g

Accessories:

Battery, Carrying case and Operate guidebook
