ManufacturerTOPKY
ModelCD4A
PN
CertificateExplosion proof certificate Coal mine safety certificate Test report
Tel010-51652021 13301315965
Last time2015-11-16 15:09:00
Clicks1162
Parameters

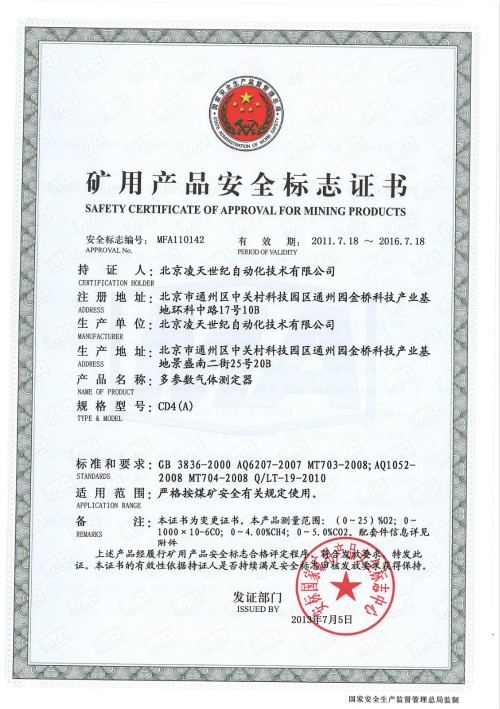

Qualifications: Coal Mine Safety Certificate
Explosion-proof Certificate
Inspection Certification
1.detect CH4,O2,CO,CO2 at the same time
2. 2-year warranty
3. Adjustable low and high alarm setpoints
4.Exibd I IP54
Applications:

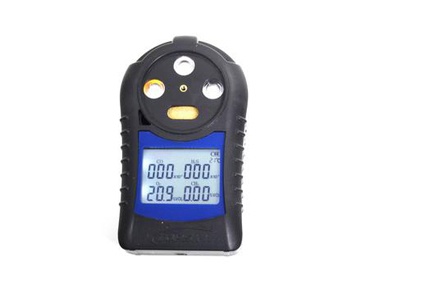

CD4(A) portable Multi-gas detector is an intrinsically safe and explosion-proof instrument and is designed to deter the gases. It can simultaneously monitors up to four atmospheric hazards including carbon monoxide (CO), oxygen (O2), combustible gas (%LEL), and carbon dioxide (CO2). Compact and lightweight, CD4 (A) portable Multi-gas detector activates audible, visual and vibrating alarms in the event of a low or high alarm condition.
CD4 (A) portable Multi-gas detector is unparalleled in its versatility, capability and overall value. Water-resistant line of portable gas detectors has transformed the market with its matchless array of features.
It is used at the underground coal mine and mine safety inspection mainly. Certainly, it is also applied to fire fighting, confined space, chemical industry, oil and all kinds of environment that needed to measure the hazardous and toxic gases.
Technical specification:
|
Sensor |
Catalytic combustion sensor (combustible gas);Electrochemical sensors (CO,O2); NDIR infrared (CO2) |
|
Measurement of Gas |
combustible gas (CH4), carbon monoxide (CO),oxygen (O2), carbon dioxide (CO2) ; |
|
Range |
CH4: 0~4.00%(v/v); combustible gas 0-100%(LEL) |
|
O2: 0~30.0%VOL |
|
|
CO: 0~1000ppm |
|
|
CO2:0-5% |
|
|
Accuracy |
CH4: +10% (1%LEL) |
|
O2: +0.7%VOL |
|
|
CO: +5% |
|
|
CO2: +1% |
|
|
Resolution |
CH4: 0.1%CH4 (1%LEL) |
|
O2: 0.1%VOL |
|
|
CO: 1ppm |
|
|
CO2: 0.1% |
|
|
Alarms |
Visual,audible(75 dB) |
|
Typical battery life |
≥10 hours |
|
Explosion protection |
Exibd I |
|
Protection grade |
IP54 |
|
External Dimensions/ Weight |
105(L)×56(W)×28(H) mm/250g |
Accessories:
Battery, Carrying case and Operate guidebook
