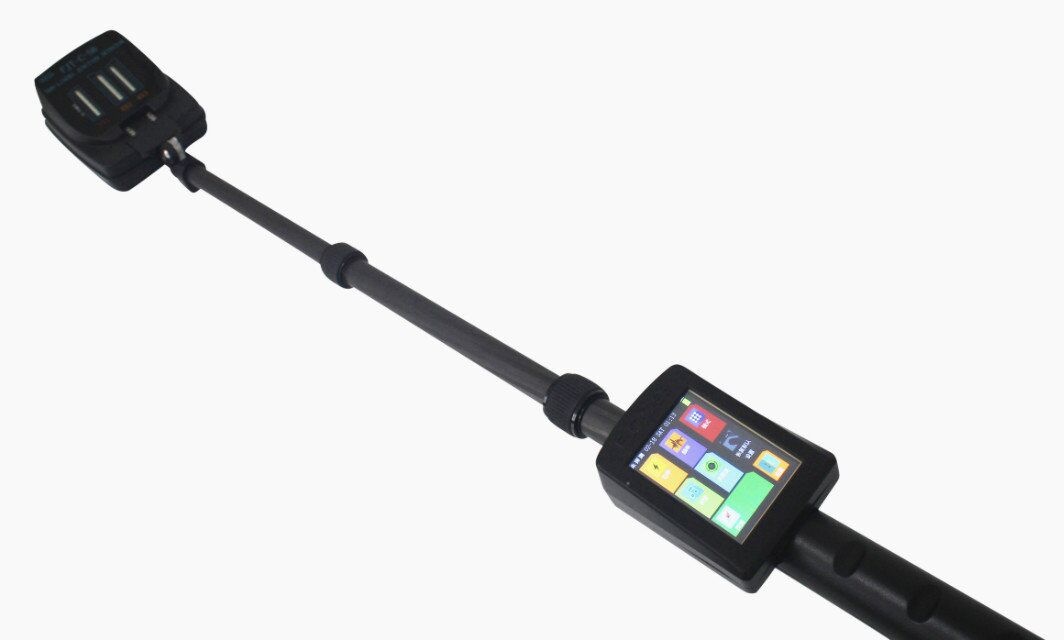

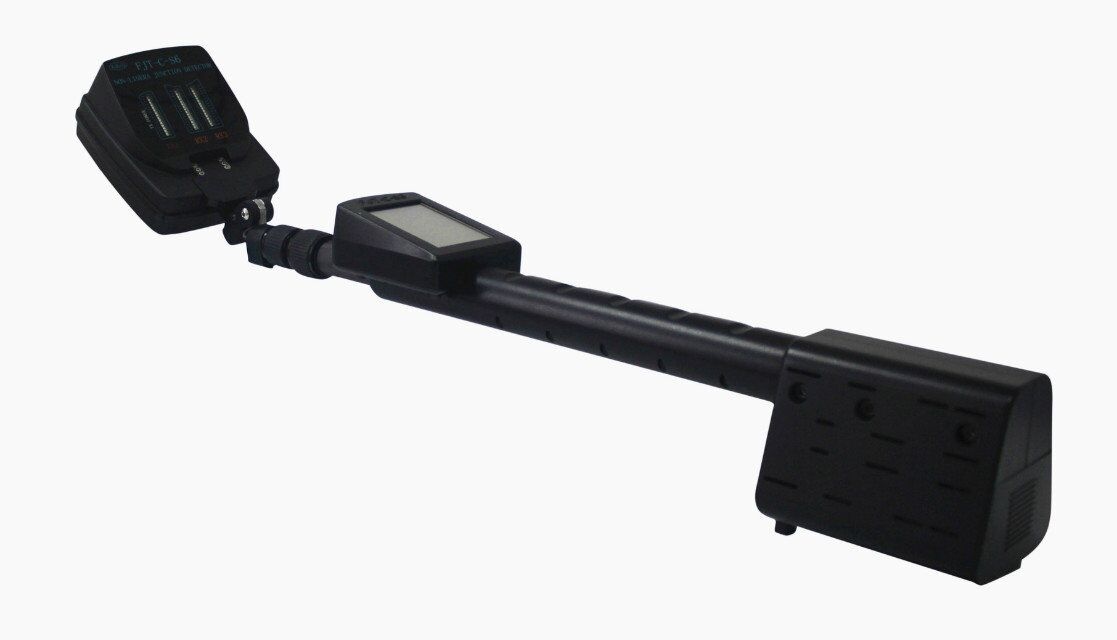

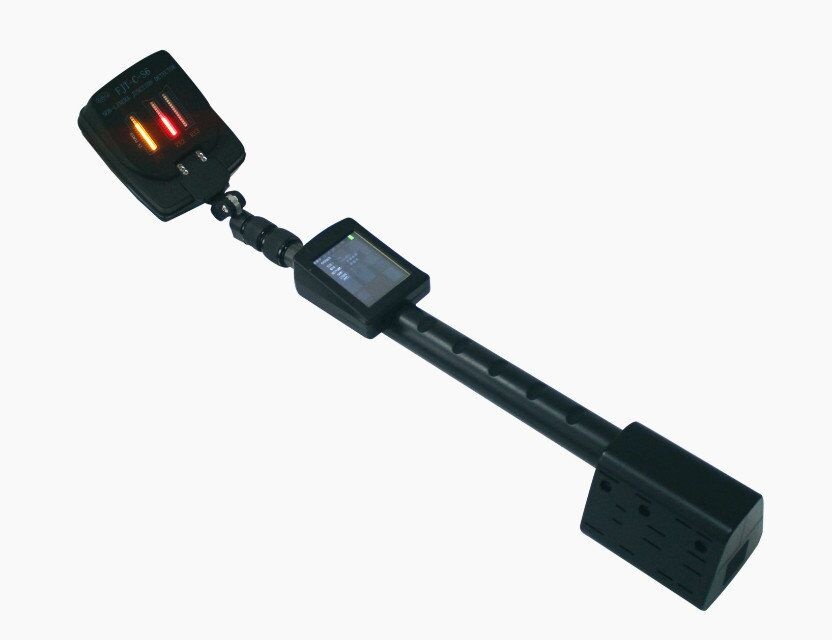

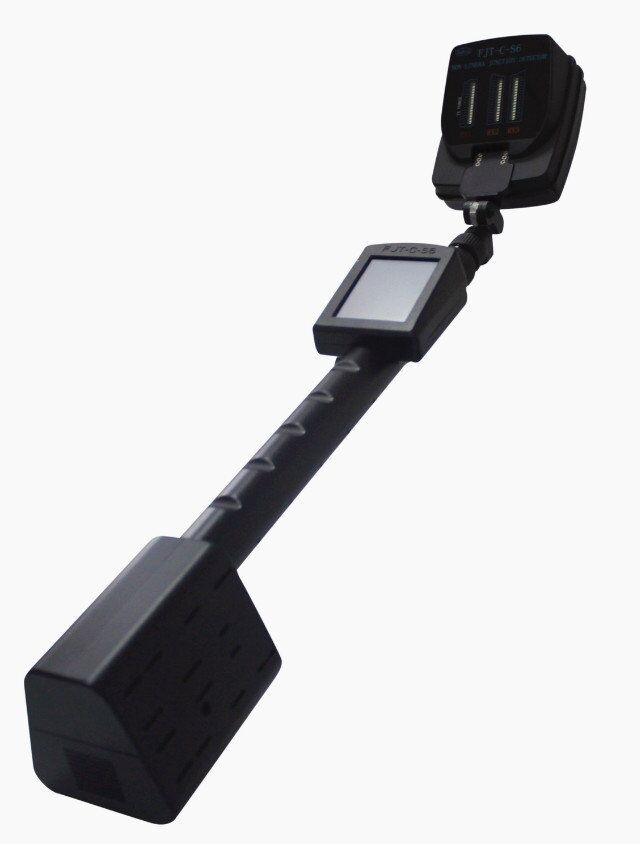

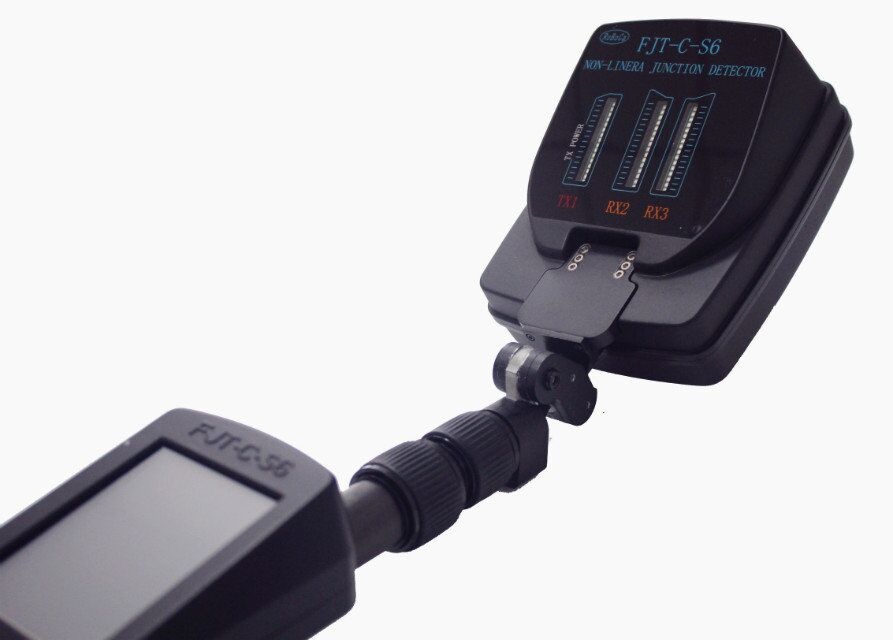

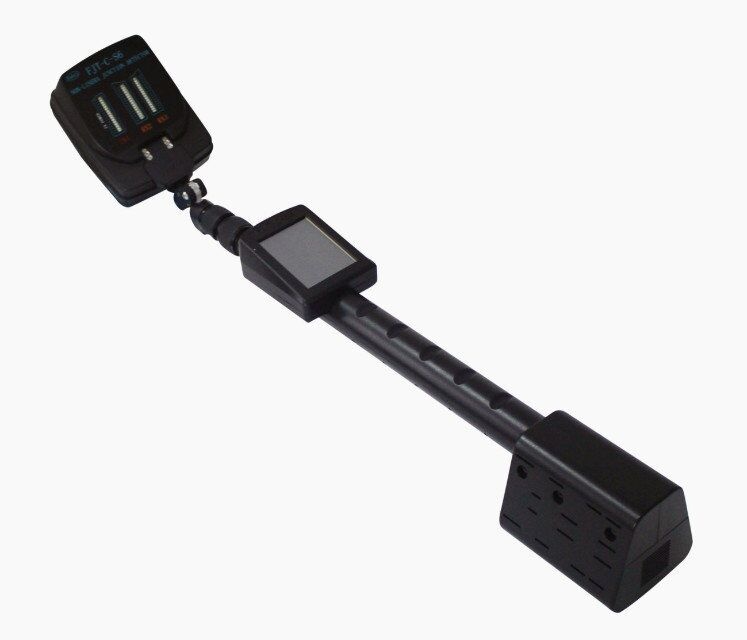

Non-Linear Junction detector FJT-C-S6

Model: FJT-C-S6

 1.Overview

FJT-C-S6 non-linear junction detector is used for search and location of electronic devices both in active and switch-off state. The detector operation is based on the property of semiconductor components to generate a harmonics response when radiated by a microwave probing signal.

FJT-C-S6 non-linear junction detector  can  automatically find the best reception frequency channel without interference, it can be used in a complex electromagnetic environment. Power output can be automatically adjusted to facilitate the work of the operating personnel to the maximum extent.

FJT-C-S6 can simultaneously detect semiconductors and metals, such as remote control, mobile phones, cameras, listening devices, transmitters and so on.

 2.Specification

1. Transmitter range:2550.5Mhz-2650.5Mhz

2.Signal form: Pulse duty cycle of 5%

3.Pulse with: 500us

4.Transmitter power:3.7W(peak), power error: ± 15%.

5. Second harmonic receiver frenquency: 5101Mhz-5301Mhz

6. Second harmonic receiver sensitivity:-140dBm

7. Third harmonic receiver frenquency: 7651.5Mhz-7951.5Mhz

8. Third harmonic receiver sensitivity: -140dBm

9.Working time:4hours

10.Size:150*120*1800mm

11.Weight:1.5KG

3. Packing list

  FJT-C-S6 non-linear junction detector------1 set

Earphone--------------------------1 set

Battery------------------------------------------2 pcs

Power adapter--------------------------------1 set
