EOD ROBOT

Model: ER3

Brief introduction

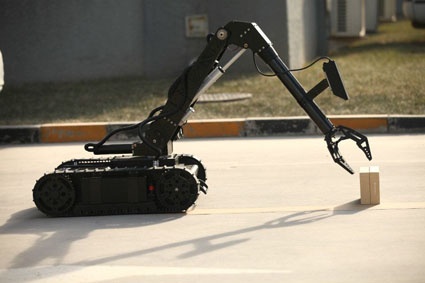

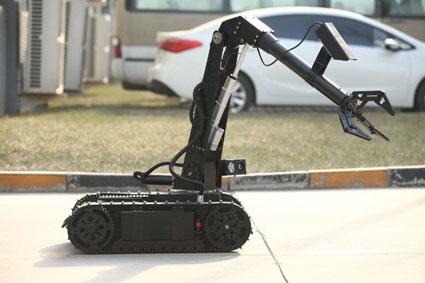

ER3 is one explosive ordnance disposal (EOD) robot. It is mainly to grab, remove and dispose the explosives. The robot arm is flexible and can be operated in narrow space. With its track band, it has powerful moving capacity. So it is applicable in various tough situation, such as sand ,grass and slope and so on. The robot is rough, dustproof ,waterproof , shockproof and performs well in every function.

Feature:

l Powerful moving capacity: with its track band , it can move on stairs, gaps.

l Fast movement. The speed can be adjustable.

l Compact size, can put in car

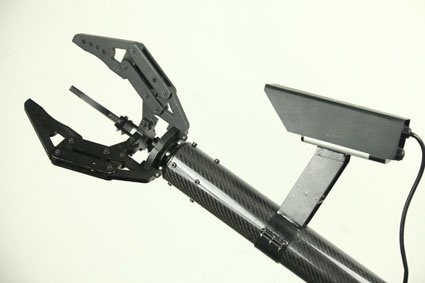

l Flexible grab arm

l The battery ,flat and arm are disassemble ,replaceable

l Rough product, dustproof ,waterproof , shockproof

Specification:

Size	810 × 550 × 460mm
Weight	≤31kg (without batteries)
Battery weight	4kg (total 24V, 20AH), can be expanded to 8kg (total 24V, 40AH)
Robot load capacity	≥10kg
Maximum speed	0-1.5m / s
Climb ability	200mm obstacles; 38 ° stairs; 40 ° slope
Operating hours	3 hours
Protection class	IP65
Chassis height	Minimum 45mm from the ground
Effective arm length	164mm
Effective arm angle	0 ~ + 360 °
Manipulator weight	≤15kg
The maximum wingspan	2000mm
Base rotation angle	-120 ~ + 120 °
Big arm tilt angle	10 ~ 180 °
Small arm tilt angle	20 ~ 180 °
Wrist rotation angle	-150 ~ + 150 °
Grab range	0 ~ 170mm
PTZ pitch angle	-30 ~ + 90 °
PTZ rotation angle	0 ~ + 360 °

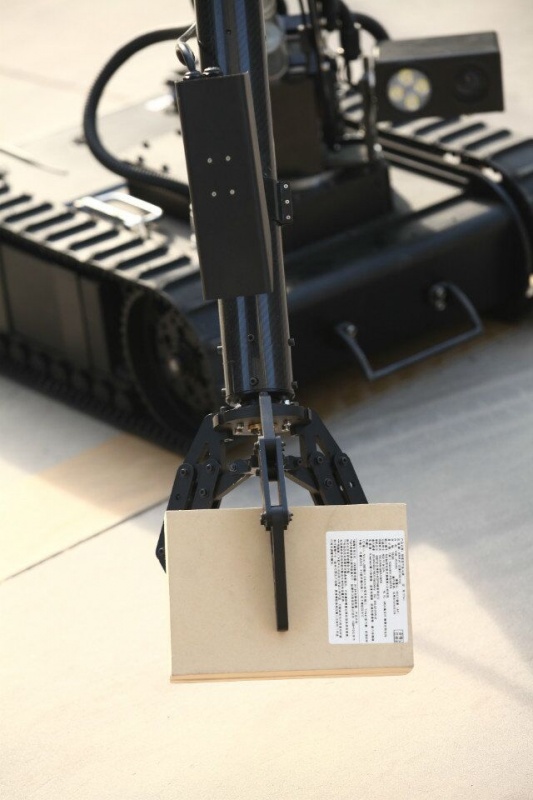

Grab ability	8kg (when arm is folded); 3kg (when arm is fully extended)
Vertical grab height	1350mm
Horizontal grab distance	1200mm
