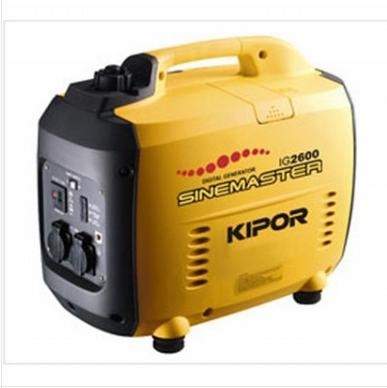

Digital generator set IG2600

Technical Parameters:

Model:IG2600

Rated frequency:（Hz）50/60

Rated voltage (V):230    120/240

Rated Current (A): 10    19.2/9.6

Rated speed (r / min): 3600

Rated output power: 2.3

The maximum output power (kVA): 2.6

DC Output: 12v-5.0A

Number of phases: single-phase

Structure: portable silent type

Oil Tank Capacity (L): 5

Unit fuel consumption (g / kW.h): 500

Uptime (rated output) (hr): 3

Noise (no load - full load) (A) / 7m: 58-65

Dimensions (L × W × H) (mm): 565X320x465

Net weight (kg): 29.5

Start: recoil hand start

Fuel type: automotive unleaded gasoline

Oil type: CD grade or above SAE10W-30,15W-40

Engine Model: KG166

Cylinder structure form:Vertical single-cylinder, four-stroke, air-cooled, overhead cam

Bore × Stroke (mm): 66×50

Displacement (ml): 171

Compression ratio: 8.5: 1

Rated power [Kw (r / min)]: 3.3/3600

Ignition system: all-transistor electronic ignition (TCL)

Spark Plug:WR7DC

The lowest fuel consumption (g / kW.h): 395
