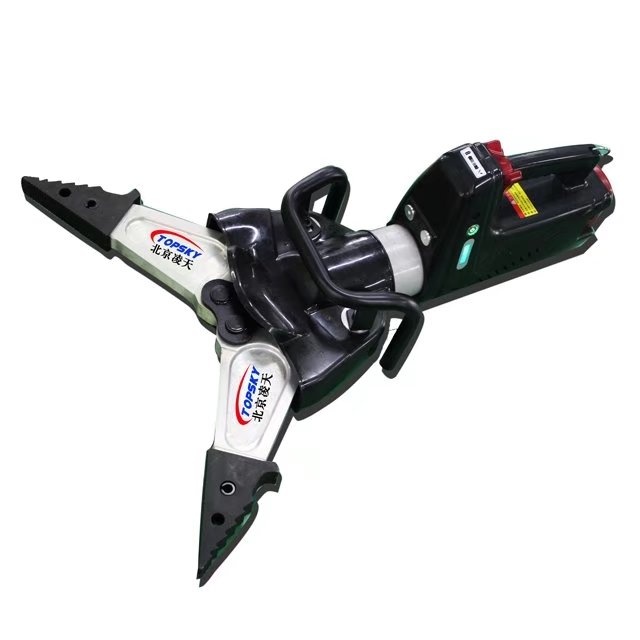

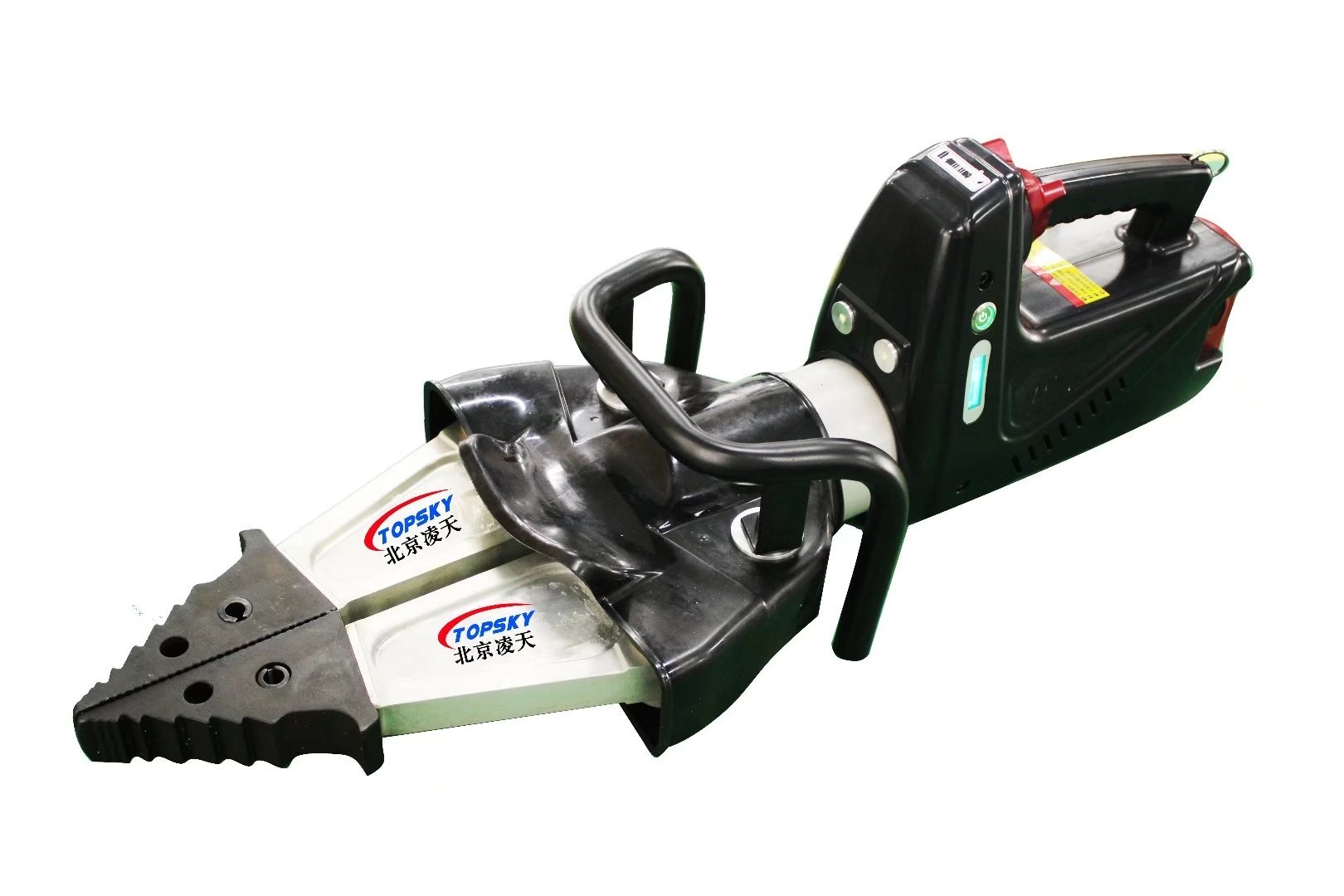

BS80 Electric expansion clamp

Introduction：

Electric expansion clamp with expansion, tearing, clamping and pulling function (with traction chain), can carry out high-load rescue operations, using high-strength lightweight alloy.It can be opened within 1 second which can greatly reduce the rescue process.Two large-capacity 4AH lithium batteries are charged quickly and work for a long time to meet the needs of complex rescue environments.

Main technical parameters：

Rated work pressure                      72MPa

Expansion distance                        650mm

Max. expansion force                      130KN

 Mini expansion force                      47KN

 Rated traction                            42KN

 Traction distance                         520mm

Weight                                    22.8kg

 Dimension                              905*350*280mm
