1. Summary

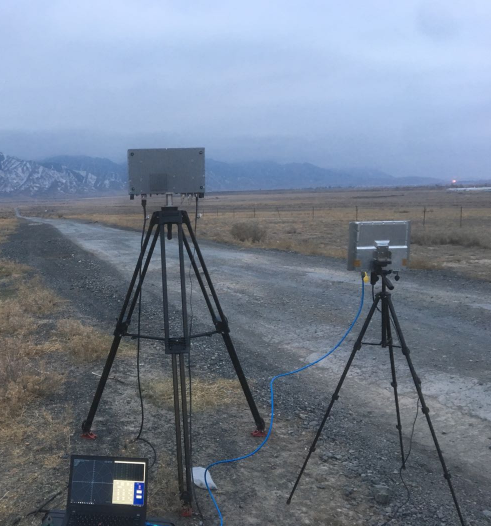

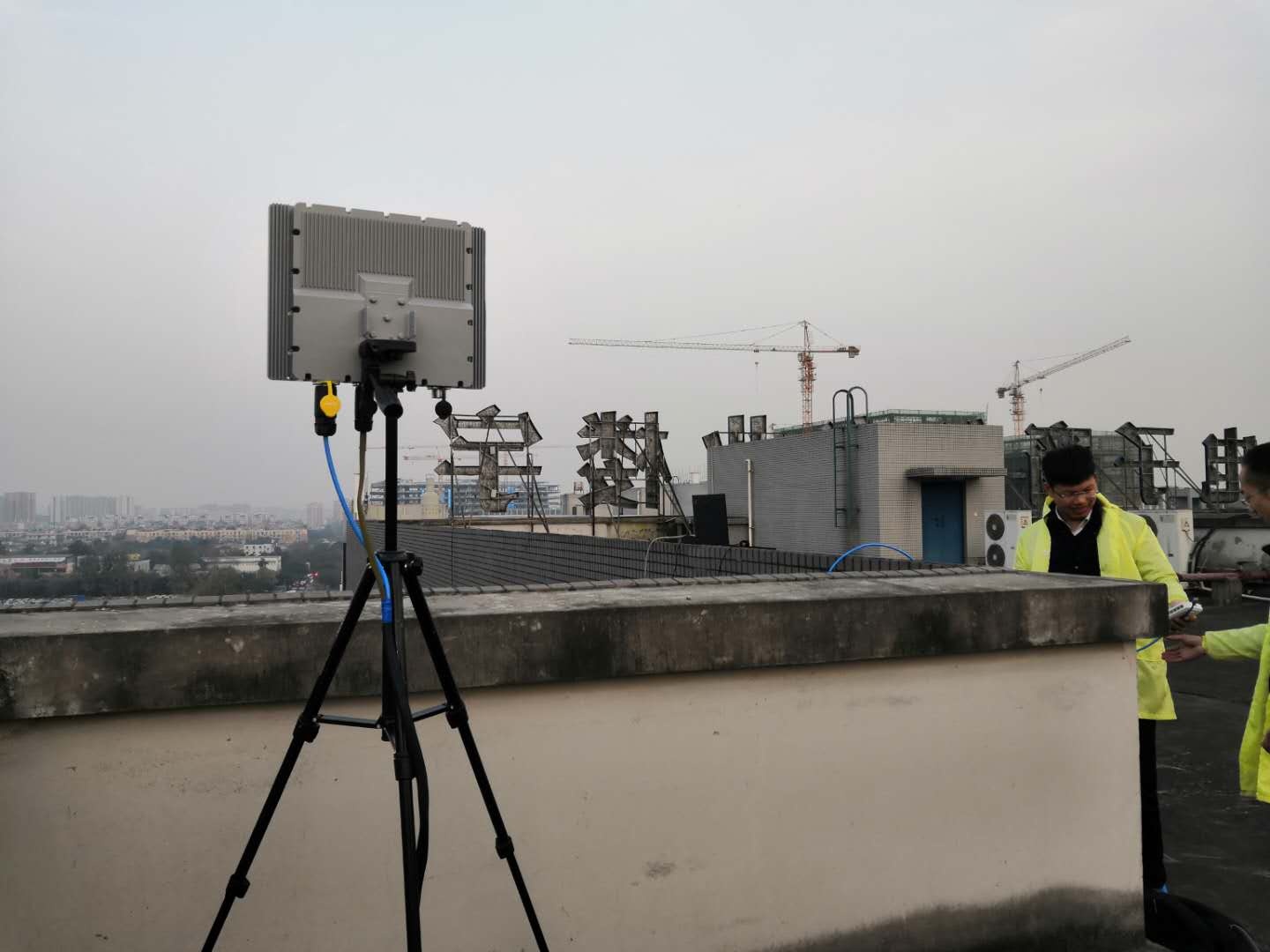

Security radar RS1500 is a kind of phased array radar with advanced technology and stable performance, which is developed for detecting walker target and driving vehicle target.

The radar adopts the pulse Doppler phased array technology system, through the modular and standardized design, the comprehensive use of digital T/R, adaptive moving target detection, Kalman filter and other technical means to achieve the detection of pedestrian, vehicle and other moving targets in the key monitoring area. And provide real-time, accurate and continuous target information for the monitoring system.

Radar is a small phased array radar with excellent performance and high reliability, which has the characteristics of good detection performance, strong maneuvering tracking ability, high ground clutter suppression, low power consumption and low cost.

Radar host can be connected with superior system though network to realize networking or remote control working. And it also can work independently by configuring display and control terminal.

As an optional equipment, display and control terminal can be realized by industrial computer, reinforced computer or handheld terminal equipment according to customer’s needs.

Radar host and display terminal are connected by cables (1000Mbit/s, compatible with 100Mbit/s).

Security radar power supply is mainly municipal power supply, compatible with +24V DC power supply, while supporting solar energy, wind power and other equipment power supply.

1. Radar Function

RS1500 radar is mainly used for border guards and key areas security, detecting personnel, vehicles and other targets. The main functions are as follows:

² Search and locate the walking personnel, mobile vehicles, and other targets.

² On-line monitoring, fault diagnosis, and fault location.

² Automatic recording and playback of working state.

² Providing guidance information for the upper system and has the ability of collaborative work.

² With network function, multi-radar cooperation can be realized.

2. Technical Specifications

1) Working System: Mono-pulse system and one-dimensional active phase sweep in azimuth;

2) Frequency: X band;

3) Frequency Point Quantity: 10;

4) Working Mode: Searching mode, Tracking mode, Fixed-point monitoring mode, and Self-checking mode;

5) Electrical Scanning Range: maximum ±45°, and can be set arbitrarily in the range of ±45°;

6) Scanning Mode: Phase scanning;

7) Tracking Mode: TWS: ≥40 batch;

8) False Alarm Probability: less than once a day;

9) Beam Width

² Pitch Beam Width: 7°

² Azimuth Beam Width:13°;

10) Detection Range:

² For walking personnel: ≥3km（V≥0.5m/s，RCS=0.5m²，Pd=80%）;

² For mobile vehicles: ≥5km（RCS=10m²，Pd=80%）;

11) Blind area of Detection Range: ≤75m

12) Target Velocity Range: 0.2m/s～120m/s(1.8km/h～432km/h);

13) Distance Display Range: 0km～5km;

14) Accuracy Error:

² Distance: 6m;

² Azimuth: ≤ 0.2°;

² Velocity: ≤0.1m/s;

15) Continuous Working Hours: 7×24h, can be used as on duty alarm to work continuously;

16) Power Consumption: ≤30W;

17) Power Supply: Solar, Wind, Municipal, Power station or Battery.

18) Weight: ≤3kg;

19) Structure Size: 295mm×290mm×60mm(radar host)

20) Reliability and Maintainability:

² MTBF ≥ 8000h;

² MTTR ≤ 0.5h;

21) External Interface: RJ-45 for TCP/IP;

22) Environmental Adaptability:

² Storage Temperature: -45℃ ~ +65℃;

² Working Temperature: -40℃ ~ +55℃

² Relative Humidity: 95±3% (30℃，no condensation);

² Protection Level: IP66.
