Parameters

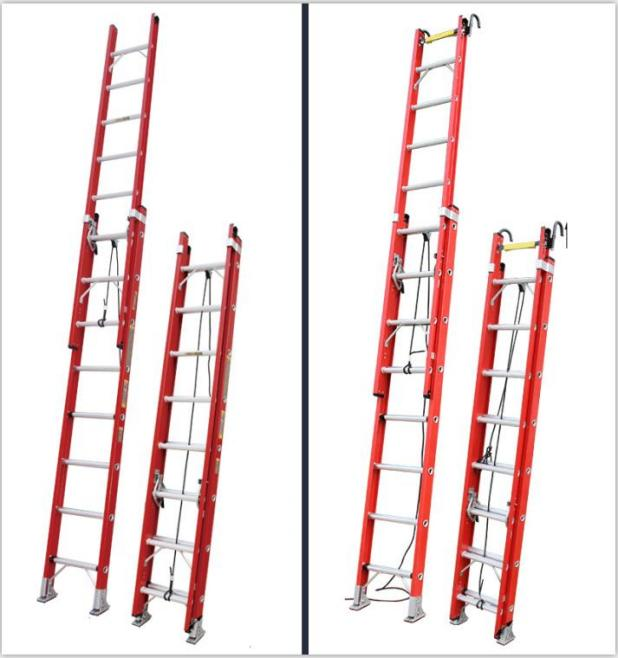

Fiberglass Extension Ladder
Fiber glass Extension Ladders are designed to be used for overhead lines structures to allow climbing.
It is made of two sliding sections.
The ladders is portable and suitable for use in the construction operation and maintenance works. They are used mainly on round and lattice type steel poles and concrete poles.
The fiberglass extension ladders comply with EN131 Standard.
Features:
★Size of Frame: 30 x 85mm
★Thickness: 3mm
★Color: Red or Yellow

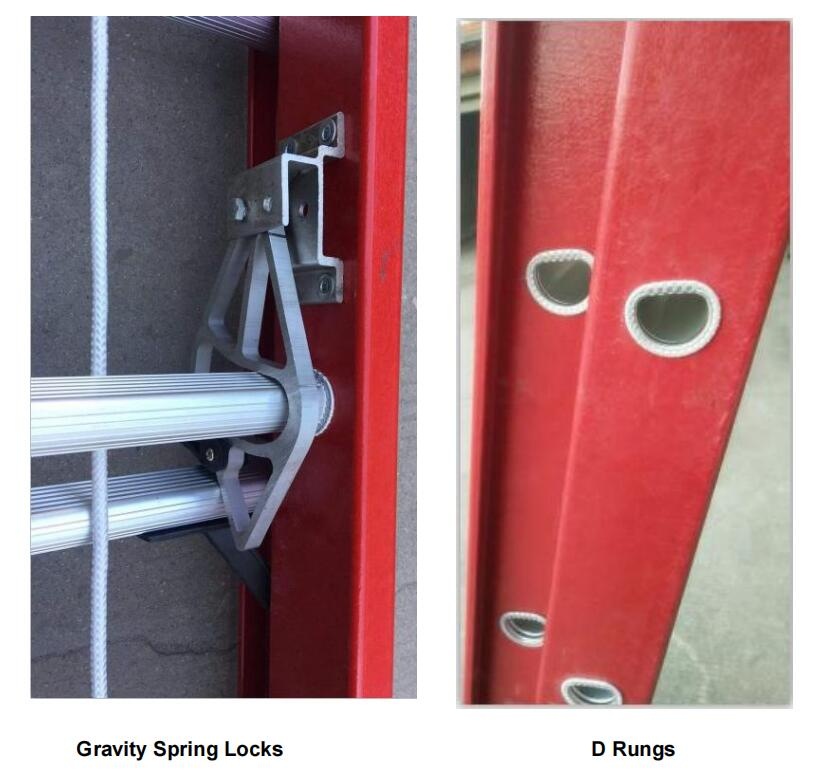

★Slip-resistant D rungs
★Gravity spring rung locks

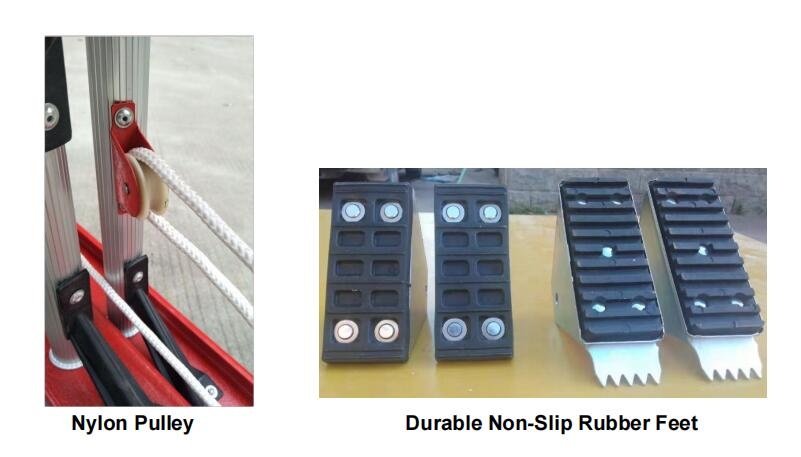

★Self-aligning shoe with slip resistant tread
★Max Loading: 150kgs
Specification:
Model
Extended
Length
Closed
Length
Total
Length
(Double
Of Closed
Length)
Width
Steps
Step
Distance
Net
Weight
20GP
40GP
40HQ
(pcs)
EL-16step
4.08m
2.6m
5.2m
390/420mm
2 x 8
30cm
13.10kgs
20GP: 130
40GP: 260
40HQ: 280
EL-20step
5.28m
3.2m
6.4m
390/420mm
2 x 10
30cm
16.15kgs
20GP: 65
40GP: 195
40HQ: 210
EL-24step
6.48m
3.8m
7.6m
390/420mm
2 x 12
30cm
19.10kgs
20GP: 65
40GP: 195
40HQ: 210
EL-28step
7.68m
4.38m
8.76m
390/420mm
2 x 14
30cm
21.70kgs
20GP: 65
40GP: 130
40HQ: 140
EL-32step
8.86m
4.98m
9.96m
390/420mm
2 x 16
30cm
24.50kgs
20GP: 65
40GP: 130
40HQ: 140
EL-36step
9.80m
5.6m
11.2m
390/420mm
2 x 18
30cm
27.90kgs
20GP: 65
40GP: 130
40HQ: 140
EL-40step
10.7m
6.2m
12.4m
390/420mm
2 x 20
30cm
30.30kgs
20GP: 0
40GP: 65
40HQ: 70
45HQ: 140
Detail Pictures:
Application:
