Product introduction

DH65 maximize performance and durability. This latest scientific "State of the Art" technology creates a hard wear resistant, low friction film. Our steel alloy piston ring is coated with "PCVD" while our cylinder is coated with a hard durable ceramic coating. Together they reduce friction and form a clean burning system that generates more power, while ensuring longer life. In addition to these features our "HEMI" head design makes this saw the most powerful in its class.

Specifications:

Model No.

DH65

Power Type

Two-Stroke

Displacement

65CC

Power

3.5KW(4.8HP)

Speed

9500rpm

Blade No-Load Speed

2600rpm

Outer Diameter

14"/350mm

Arbor Size

1"(25.4mm)/7/8"(20mm)

Depth of cutting

5"(123mm)

Packing Size

28-1/2"(725mm)X17"(436)mmX10"(252mm)

Net/Gross Weight

21.56LBS(9.8KG)/26.18LBS(11.9KG)

20' Container

360units

40' Container

720units

Well Balanced ● High Performance ● Durable ● Efficient ● Lightweight
Well Balanced	Efficient

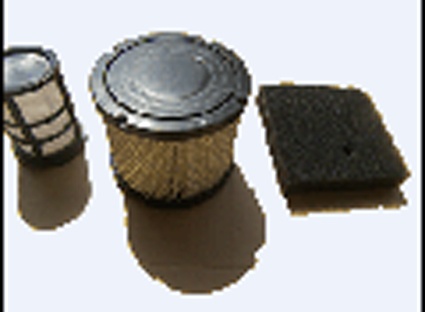

■Ergonomically and user friendly designed	■High Efficiency 3 Stage Air Filtration System

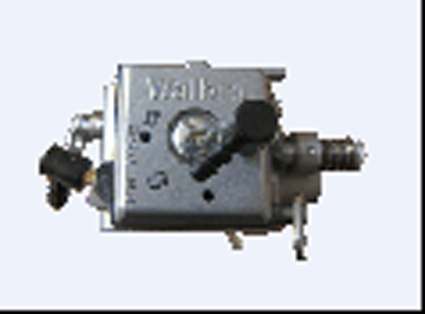

High Performance	■Precision engineered Carburator and Fuel Filter

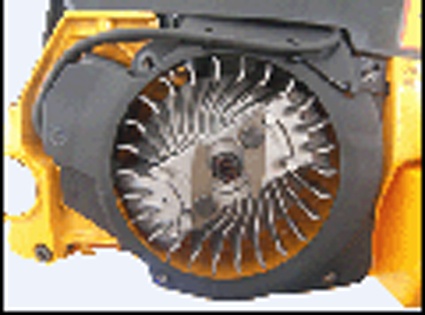

■Advanced engineering design dampens vibration	■Technologically advanced Digital Ignition

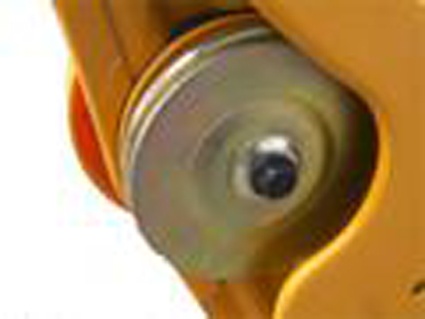

■Poly-V-Belt generates maximum torque transfer	■Reliable and easy start-up decompression system
■Accepts 12" and 14" blades with 20mm-1" arbor	■Anti slip flange transfers power with maximum torque
■Designed for tough applications in: Concrete, Masonry, Asphalt, Stone, Steel and Ductile Iron	■Environmentally friendly: gas tank vapors are burned instead of being released into the air
■Low emission and excellent fuel economy	■Advanced exhuast design reduces noise and emissions
■Enlarged, protected trigger area allows operator to wear gloves	■Front rollers lessen operator fatique and aid in cutting

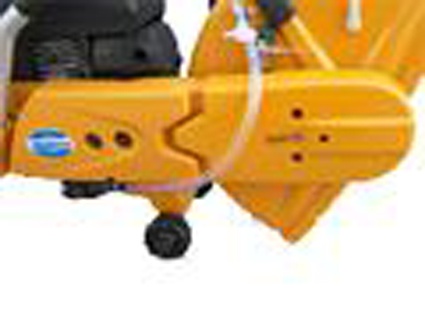

Durable	■Easily adjustable blade guard for any angle work
■Precision engineered Cold-Forged Steel Shaft	■Upright and enlarged fuel port for easy fueling
■Convenient and Sturdy Starter System	Lightweight
■Sealed Clutch and Shaft Bearings	■Innovative design reduces weight: Magnesium alloy frame and cutting arm with an aluminum alloy blade guard
■"PCVD" coated piston ring guarantees less friction	■Weight 22 Lbs: Eliminates operator fatigue
■Ceramic coated cylinder is protected against heat	Standard Equipment

■ Water kit

Product Description

Well Balanced：

Ergonomically and user friendly designed Innovative design reduces weight: Magnesium alloy Frame and cutting arm with an aluminum alloy blade guard Weight 22 Lbs: Eliminates operator fatigue。

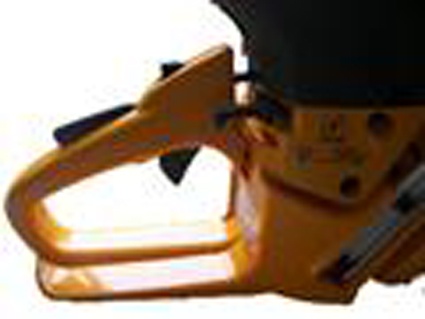

Throttle trigger

Enlarged, protected trigger area allows operator to wear gloves

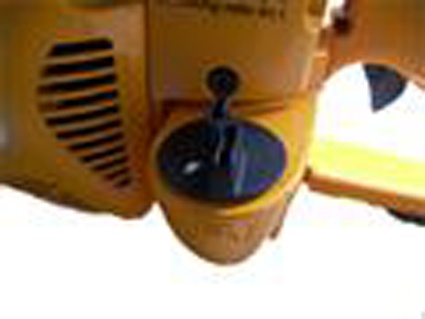

Adding fuel

Upright and enlarged fuel port for easy fueling。

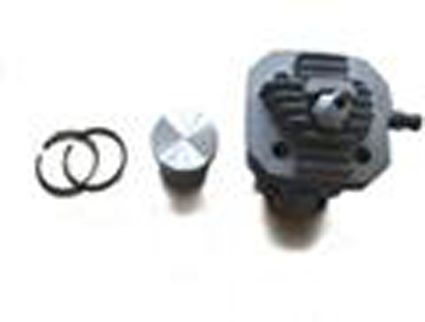

PCVD Technology

uses “PCVD” to maximize performance and durability. This latest scientific “State of the Art” technology creates a hard wear resistant, low friction film. Our steel alloy piston ring is coated with “PCVD” while our cylinder is coated with a hard durable ceramic coating. Together they reduce friction and form a clean burning system that generates more power, while ensuring longer life. In addition to these features our “HEMI” head design makes this saw the most powerful in its class.
